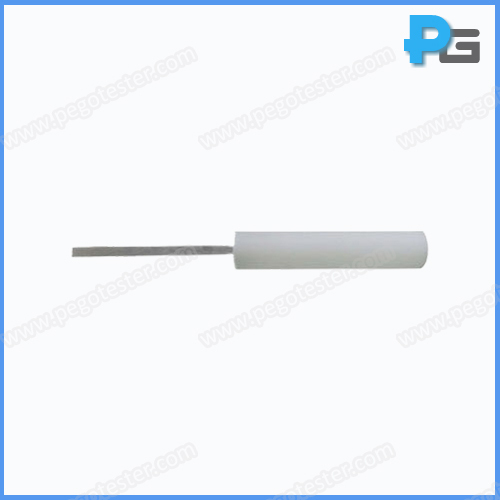

Test Probe 14 ( Test Bar )

1. Introduction:

Test probe 14 (Test bar : 3*1) designed according to IEC61032 Figure 10. This bar is intended to verify the protection against access to hazardous live parts of socket outlets through shutters. 20N force is recommended to be applied.


2. Specification:

1. Diameter of probe: 3mm

2. Length of probe: 80mm

3. Width of Probe: 1mm


Description
The test probe 14 is designed according to IEC61032 Figure 10.
Model
PG-TP14
