Test Probe 31 (Φ110/60 Test Cone )
Test Probe 31 (Φ110/60 Test Cone )
- Detail
- Parameters

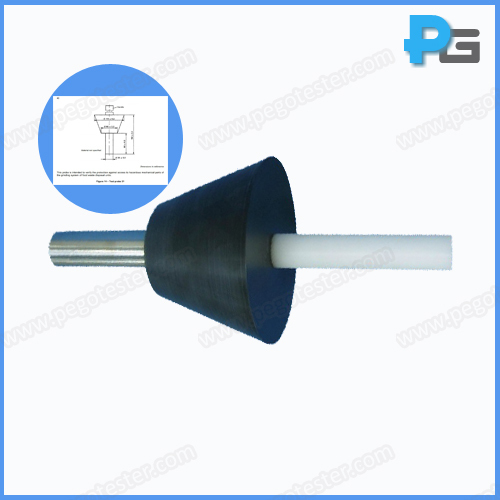

Test probe 31 ( Test Cone)
1. Introduction
Test probe 31 (test cone)is designed according to IEC61032 figure 14, this probe is intended to verify the protection against access to hazardous mechanical parts of the grinding system of food waste disposal units.
2. Specification
diameter of probe | 25mm |
Length of probe | 80mm |
Diameter of front baffle | 60mm |
Diameter of bottom baffle | 110mm |
Total length of probe and baffle | 150mm |
Material | nylon |
Description
Test probe 31 is designed according to IEC61032 figure 14
Model
PG-TP31
