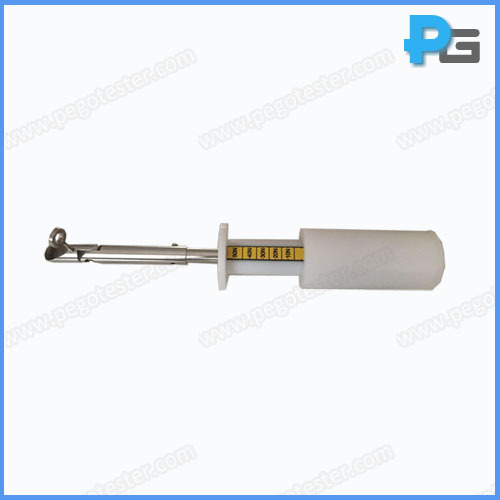

IEC60335 Finger Nail Probe ( test finger nail )

1. Introduction

The finger nail probe is designed according to IEC60335-1 figure 7, and meet the test requirements of IEC60335-1 clauses 21.2 and 22.11. The test is applied after scratch test. Test fingernail is mainly used for puncture-proof test of the accessible part of the solid insulation. Also, it is applied to verify if the non-removable parts of an electric shock or release moving part are able to withstand the mechanical stresses that occur during normal use.


2. Specification

Nail component

Finger tip, middle finger,   finger seat and loop

Force Applied (built-in thruster)

oN, 10N, 20N, 30N, 40N, 50N

Standard

IEC60335-1 figure 7, GB4706.1 figure 7


Description
Finger nail probe is in accordance with the Figure 7 of IEC60335.1 and GB4706.1.
Model
PG-FNP
