Test plug for Antenna Coaxial Socket

1. Introduction

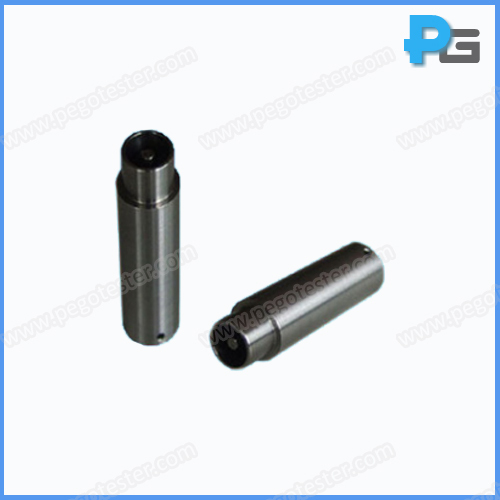

The test plug is designed according to IEC60065 figure 9. The plug is for checking the ability of antenna coaxial sockets mounted on the apparatus to withstand mechanical stresses, includes endurance test, impact test and torque test.

2. Specification

● Length j: 43±0.4mm

● Length g: 40±0.4mm

● Depth d: 9.1mm

● Depth e: 7.112mm

● Depth f: 0.8±0.4mm

● Outer diameter h: 12±0.4mm

● Outer diameter a: 9.576mm

● Outer diameter b: 8.05mm

● Shaft diameter c: 2.438mm

● Radius K: 0.3mm

● Hole Diameter: 1.5mm

● Material: steel

● Standard: IEC60065-2005 figure 9, GB8898-2011 figure 9
