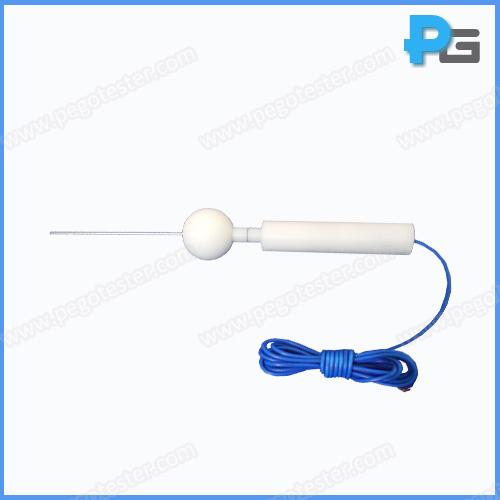

Test probe C for IP3X testing ( Test rod : Φ2.5 rod-length 100 )
1. Introduction:
Test probe C (test rod) Designed according to IEC61032 figure 3, IEC60529, IEC60065，IEC60598 and etc.. This is an IP code probe, it is to verify the grade of IP3x, means for the protection against solid foreign objects of Φ2.5mm and greater. And simulate the person's tool to verify the accessiblity to hazard parts protected by enclosure.
The test probe C can work with force gauge to apply 3N force. Or user can select the probe with 3N thruster built-in, so that to apply force directly dring the test. A wire is lead out, which can work with control panel to form a continuity indicating circuit.
2. Specification
Length of test rod: | 100mm | Diameter of test rod: | 2.5mm |
Diameter of stop sphere: | 35mm | Diameter of handle: | 10mm |
Length of handle: | 100mm | Thruster (optional): | 3N |
Material: Insulating material (handle, sphere), metal (test rod) | |||
