Interlock Concealment Test Probe

Interlock Concealment Test Probe

share
  • Detail
  • Parameters

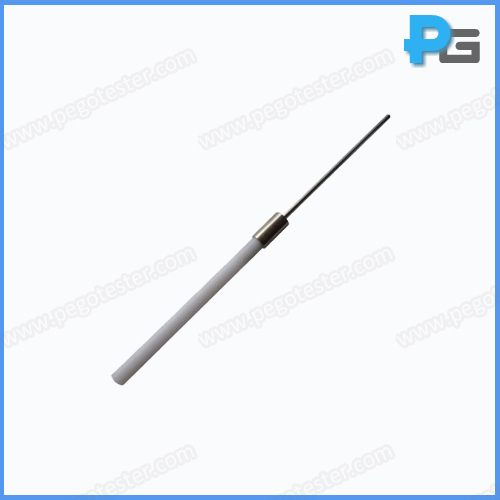

Interlock Concealment Test Probe IEC60335-2-25 Fig 101

1. Introduction

The interlock concealment test probe is designed according to IEC60335-2-25 clause 22.105 and figure 101, it is applied to microwave oven.


2. Parameter

Diameter of test rod

Φ3mm

Diameter of handle

Φ10mm

Length of rod

100mm

Standard

IEC60335-2-25


3. Figure



Description
The interlock concelament test probe is designed according to IEC60335-2-25 clause 22.105 and figure 101, it is applied to microwave oven
Model
PG-TRD
