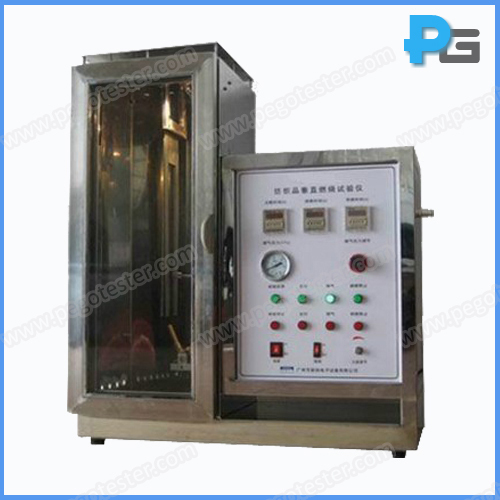

Textiles Vertical Flammability Test Apparatus

1. Introduction

Textiles vertical flammability test apparatus is applied to test the burning behaviour of woven fabric, knitted fabric, coated fabric and Laminated products. The equipment is designed according to GB/T5455-1997 and JIS1091-1992.

2. Parameter

● Burner: Φ11mm ± 0.3mm igniter

● Burning angle: 25⁰ or 90⁰

● Flame height: 30mm ± 2mm to 50mm±2mm (adjustable)

● Burning time: 0-999.9s±0.1s (adjustable)

● Afterflame time: 0-999.9s±0.1s

● Afterglow time: 0-999.9s±0.1s

● Burning gas: 98% propane gas

● Clamps: U-sharp clamp, (L)422*(W)89*(TH)2mm, interior size: 356*51mm

● Weights: 54.5g, 113.4g, 226.8g, 340.2g, 453.6g each one

● Working size: (W)329*(D)329*(H)767mm
