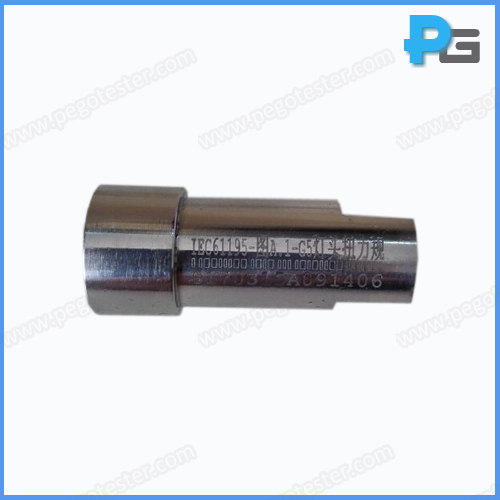

G5 and G13 Torque Gauges for Torsion Resistance Test of Unsed Lamps
The G5 and G13 toque gauges for torsion resistance test of Unsed Lamps is designed according to IEC61195 figure A.1. The torque gauges should work with torque screwdriver to apply torque force. The gauges can come with calibration certificates issued by an ISO17025 authorized lab.
Dimension | G5 (mm) | G13(mm) | Tolerance (mm) |
C | 16.0 | 36.0 | Minimum |
D | 4.75 | 12.7 | ±0.03 |
E | 2.8 | 2.8 | +3.0 |
G | 1.5 | 1.5 | Approximate |
H | 4.0 | 4.0 | Approximate |
K | 4.8 | 7.8 | Minimum |
Description
G5 and G13 holder torque gauges meets the requirements of IEC61195 figure A.1
Model
HTG
