Torque Test Apparatus for performing Torque Test to Cord Anchorage of Appliance Coupler

1.Introduction

Cord anchorage torque test apparatus designs to meet the test requirements of IEC60320-1 clause 22.2.3. The cord of connector / plug connector is subjected for 1min to a torque 0.1N.m / 0.15N.m / 0.25N.m.


The torque test shall be carried out after the completion of pull test. During the tests, the cord shall not be damaged. After the tests, the cord shall not have been displaced by more than 2mm.


2. Specification

Torque disk diameter

100mm

Weight

2N/3N/5N/7N/8.5N*1

Torque range

0.1N.m, 0.15N.m, 0.25N.m, 0.35N.m, 0.425N.m

Reference standard

IEC60320-1 clause 22.2.3

IEC60884-1 clause 23.2 (table 18)

VDE0620 clause23.2(table18)

Description

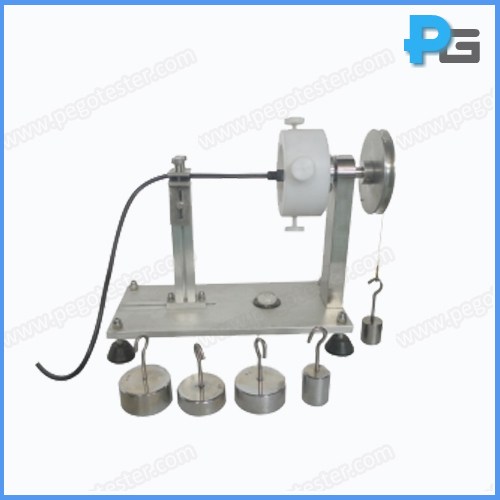

Torque test apparatus designs to meet the test requirements of IEC60320-1 clause 22.2.3, for performing the torque test to cord anchorage of appliance coupler.
Model
PG-PCT
