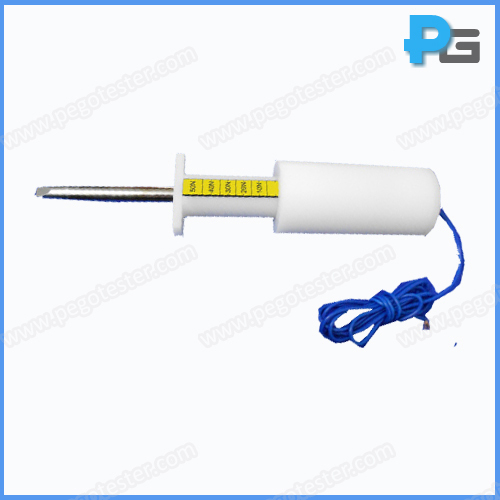

Test Probe 11 (Rigid Finger Probe)

1. Introduction

Test probe 11 also be called as rigid finger probe or unjointed test finger. It is designed according to IEC61032 figure 7. This probe may be used to verify the protection of persons against access to hazardous parts, and to verify the mechanical strength of openings in the enclosure or internal barriers.

The probe can work with force gauge to apply 50N force. Or user can select the probe with 50N thruster built-in, so that 0N, 10N, 20N, 30N, 40N and 50N force can be applied directly during the test. A wire is lead out, which can work with control panel to form a continuity indicating circuit.

2. Specification
