Aluminum vessels for testing hotplates
1. Introduction

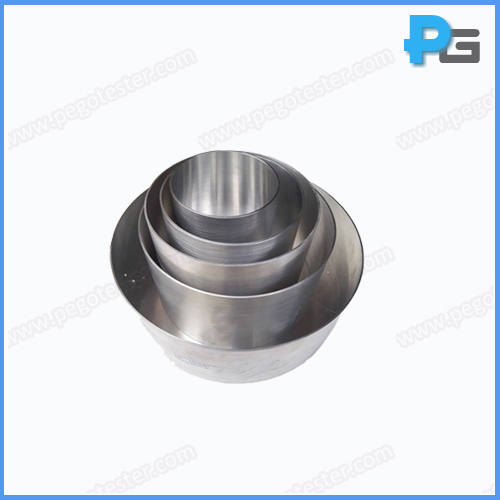

The aluminum test vessels are designed according to IEC60335-2-9 figure 103, IEC60335-2-6 figure 101, EN30-1-1 figure C2, GB4706.14 figure 103 and GB16410 figure 7 for testing hotplates and hob elements. The vessels are made of unpolished commercial quality aluminum, have a flat bottom and are covered with lid. The base of the vessel shall not be convex. The concavity of the base of the vessel shall not exceed 0.05mm.
2. Parameter
Diameter of Cooking zone (mm) | Approximate of Dimension | ||
a (mm) | b (mm) | c (mm) | |
≤110 | 110 | 140 | 8 |
>110≤145 | 145 | 140 | 8 |
>145≤180 | 180 | 140 | 9 |
>180≤220 | 220 | 120 | 10 |
>220≤300 | 300 | 100 | 10 |
