Winding Wires Elongation Test Apparatus

Winding Wires Elongation Test Apparatus

share
  • Detail
  • Parameters

1. Introduction

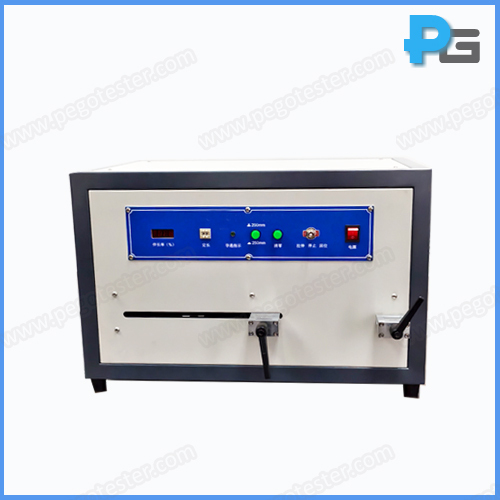

The wire elongation test apparatus is designed according to the IEC60851-3 clause 4.1 and GB/T4074.3 clause 4.1. It’s used for measuring the elongation (extension) rate of enameled wires, silk-wrapped or other insulation-coated round copper wires ranging from φ0.018 mm to φ3.000 mm, as well as other metal wires with a breaking force of ≤5000 N.


Principle:

A straight piece of wire shall be elongated to the point of fracture of the conductor at a rate of (5±1)mm/s with an elongation tester or with tensile testing equipment with a free measuring length of between 200mm and 250mm.


2. Specification

Control method

Microcontroller

Initial distance between clamps

200±1mm and 250±1mm, adjustable

Movable clamp travel distance

≥82% (164mm)

Sample elongate rate

5±1mm/s

Max. Elongation test range

80% (IEC)

Elongation display

Three-digit LED display automatically shows the test results, accuracy: 0.1%

Power Supply

AC220V±10%, 50Hz

Power consumption

≤200W or ≤350W

Operating environment

Temperature: 0-40℃, relative humidity: ≤85%

Dimension and weight

L640*W400*420mm/45KG

Function

When the specimen fractures, the movable clamp automatically stops moving.

Description
The wire elongation test apparatus is designed according to the IEC60851-3 clause 4.1 and GB/T4074.3 clause 4.1.
Model
PG-ETA
