Name

Figure number

Description

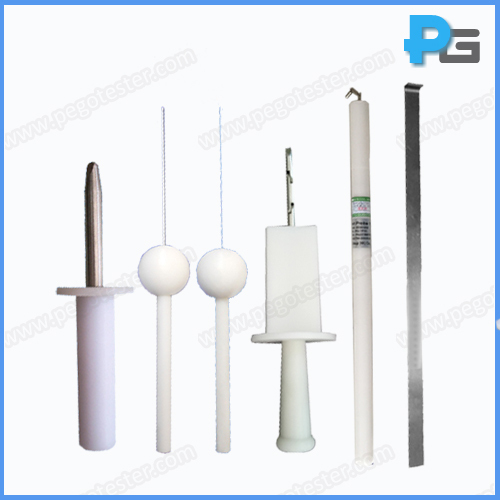

Jointed test finger (test probe B)

IEC60065 clause 9.1.1.3

IEC61032 figure 2

Purpose:Protection of person’s finger from hazardous live parts

Small Finger probe (Test probe 18)

IEC60065 clause 9.1.1.3

IEC61032 figure 12

Purpose: Prevent the apparatus from being accessed by children of more than 36 months and less than 14 years

Small Finger probe (Test probe 19)

IEC60065 clause 9.1.1.3

IEC61032 figure 13

Purpose: Prevent the apparatus from being accessed by children of 36 months or less.

Test pin (test probe 13)

IEC60065 clause 9.1.1.3

IEC61032 figure 9

Purpose: Protection against access to hazardous live parts in class 0 equipment and class II equipment

Metal Test Pin

IEC60065 clause 9.1.3

Purpose: Test test pin shall no become hazardous live

Specification:

1). Diameter: Φ4mm

2). Length: 100mm

Test Wire (Test Probe D)

IEC60065 clause 9.1.4

IEC61032 figure 4

Purpose: Test test pin shall no become hazardous live

Test Rod (Test Probe C)

IEC60065 clause 9.1.4

IEC61032 figure 3

Purpose: Test test pin shall no become hazardous live

Rigid Test Finger (Test Probe 11)

IEC60065 clause 9.1.7

IEC61032 figure 7

Purpose: protection against external forces

Test Hook

IEC60065 clause 9.1.7 and figure 4

Purpose: Protection against hazardous live parts
