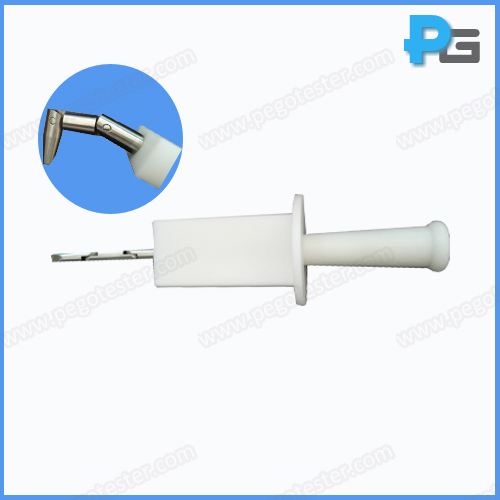

Test Probe B for IP2X testing ( jointed test finger )

1. Introduction:

Test probe B ( jointed test finger) is design according to IEC61032 figure 2, meet the requirements of UL507, UL1278 figure 8 and EN60529 figure 2. The test probe B is a IP code probe to verify the accessibility of hazardous parts protected by enclosure. The probe can work with a fore gauge to apply approriately force, and work with control panel to form a continuity indicating circuit.   User also can select the probe built-in thruster to apply force directly.

2. Specification

3. IP code Test Probe Kits:

Test Probe A for IP10 Testing:Φ50 sphere with handle

Test Probe B for IP20 Testing: jointed test finger

Test probe C for IP30 Testing: Φ2.5 rod-length 100

Test Probe D for IP40 Testing:Φ1.0 wire-length 100

Test Probe 1 for IP10 Testing: 500g steel sphere

Test Probe 2 for IP20 Testing: 15g steel sphere
